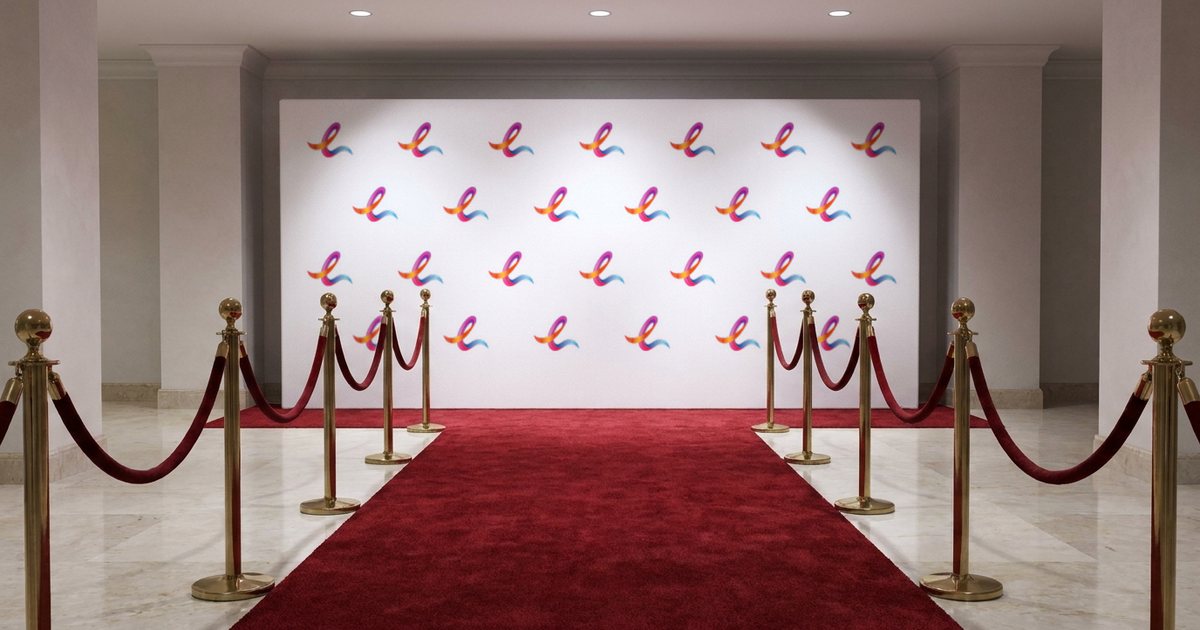

A step-and-repeat backdrop is a media wall with a logo lockup repeated on a fixed, staggered pitch of about 450 mm, so that any photograph cropped to one person still contains a complete logo. In Singapore it is usually printed on matt dye-sublimated fabric tensioned into an aluminium frame, at about 2300 mm tall and 2400 to 4000 mm wide.
What is a step-and-repeat media wall, and what is it for?
A step-and-repeat media wall is a backdrop carrying a logo lockup repeated across it on a fixed pitch, so that at least one full logo appears in any photograph cropped to a person. It is not designed for the people in the room. It is designed for a photograph taken at an angle and cropped to a torso, which is why the logo pitch matters more than the logo.
That one purpose explains every other decision on the wall. The material is chosen for how it photographs, not for how it looks in a room. The logo grid is sized to the crop of a head-and-shoulders photograph, not to the proportions of the flat artwork. The size of the wall follows from how many people will stand in front of it and how far back the camera is.
On the hardware side, a step-and-repeat media wall is the same object as a modular backdrop wall: a kit of aluminium frame parts skinned with tensioned fabric, carrying a logo pattern and built to be photographed rather than walked past. The backdrop printing page sets out the full range, from media walls to stage sets.
How far apart should logos be on a step-and-repeat backdrop?
About 450 mm between repeats, staggered rather than gridded. The pitch is set by the crop: close enough that a photograph cropped to one person still contains a complete logo, which is the entire purpose of the wall. The test is simple: draw a rectangle about a metre wide anywhere on the design, and check that a complete logo falls inside it.
Three rules follow from that test.
- Stagger the rows. A logo grid aligned in perfect rows and columns reads as a spreadsheet, and every crop lands between logos. Staggering solves both problems.
- Alternate two or three lockups. Repeating two or three lockups rather than one reads as a designed wall rather than as wallpaper. This also suits events with a host brand and several sponsors.
- Do not space the mark generously. A pitch of a metre or more means half the photographs contain no complete logo, and the wall has done nothing. A pattern that looks balanced on the flat artwork is usually too large and too widely spaced in the photographs it exists to appear in.
Remember how tall people are as well. Nothing below about a metre and a half survives being stood in front of, so keep the bottom 300 mm of the wall clear and do not rely on logos low on the wall to appear in photographs.
What size should a media wall backdrop be?
A media wall is sized to the room and the camera position, and the pitch is sized to the crop. Common media walls run 2400 to 4000 mm wide and about 2300 mm tall, so people stand well inside the frame. 3000 × 2300 mm is the common press wall, comfortable for two or three people in a photograph.
| Visible size | Typical use | Notes |
|---|---|---|
| 2400 × 2300 mm | A compact media wall for a registration desk or a small room | A single cloth in a freestanding frame |
| 3000 × 2300 mm | The common press wall | Comfortable for two or three people in a photograph |
| 4000 × 2300 mm | A group wall | Wider frames usually join at a vertical member |
| Logo pitch | About 450 mm between repeats | Staggered rather than gridded |
| Frame allowance | About 20 mm beyond the visible aperture on every edge | Taken by the seam and the silicone bead |
| Lead time | Standard 7–14 working days | Rigging scheduled separately against venue access |
Sizes are stated as the visible width × height in millimetres. The printed piece is larger, because the edge of the cloth is taken into the frame.
Why is fabric used instead of vinyl for a media wall?
Because the wall exists to be photographed. Dye-sublimated fabric is completely matt and absorbs a camera flash, while a laminated vinyl surface throws the flash straight back as a hotspot, ruining the photographs the wall is there to produce. If the backdrop will be photographed, choose fabric; that single decision does more for the pictures than any artwork detail.
How each backdrop material behaves on camera:
- Dye-sublimated backdrop fabric. A woven polyester with the dye heated into the fibre. It is completely matt, seamless at the width of the cloth, and it folds into a bag for transport. It is the correct default for media walls, stage backdrops and anything photographed or filmed.
- PVC backdrop banner. A hemmed banner hung from a truss or a frame. It is heavier, it creases where it is folded, and its surface reflects directional light. It suits short-term backdrops, outdoor stages and anything not being photographed close up, and it should be avoided for media walls and press positions.
- Modular stage set panel. Rigid printed panels on a frame, laminated matt to control stage lighting. It suits conference stages and award sets with a lectern in front, but takes longer to build and to strike than a fabric wall.
For hung banners in PVC, mesh and fabric, with their hems, eyelets and pole pockets, see the banner printing page.
How is a step-and-repeat backdrop framed, rigged and reused?
Most media walls are a printed fabric skin with a silicone bead sewn into its edge, pushed into the groove of an aluminium frame until the surface is drum-tight. The freestanding frame builds without tools and packs into a case. Rigging is scheduled separately against venue access, because hotel and convention hall get-in windows are short and often outside office hours.
The frame and the cloth have different lives. The frame is the investment; the skin is the part that changes. A modular backdrop wall bolts into a straight run, an L, a curve or a corner from the same parts, so next year’s event can be a different shape with a new skin rather than a new stand. A second event on the same aperture is a new cloth into hardware you already own, and the artwork file with its logo pitch is kept alongside it.
Outdoors, ballast matters. A tensioned backdrop is a solid surface and it behaves like a sail, so the frame needs weight at the feet or a fixing to something that is not going anywhere. Rigging options are a freestanding frame, truss suspension, wall fixing or pole pockets, and the method is stated with the specification. For walls, stands and counters in the same system, see the exhibition stand printing page, and for how a tension frame compares with a folding magnetic system, see tension fabric vs pop-up displays.
How should step-and-repeat artwork be prepared?
Draw to the printed size, not the visible size. A tension-frame graphic is printed about 20 mm beyond the visible aperture on every edge, because the seam and silicone bead are taken into the extrusion. Keep another 60 mm of safe margin inside the aperture, leave the bottom 300 mm clear, and supply the logo pitch as a repeating pattern.
- Format: PDF/X-4 at final size, or at a stated fraction with the scale in the file name.
- Printed size: the visible aperture plus about 20 mm per edge.
- Safe margin: 60 mm inside the visible aperture, and the bottom 300 mm kept clear.
- Logo pitch: about 450 mm between repeats, staggered, supplied as a repeating pattern rather than as placed copies.
- Logos: vector and outlined, because a logo scaled up from a raster file is visible at this size.
- Resolution: 100 dpi at final size.
- Colour: CMYK, with Pantone references for sponsor logos that must match their own guidelines.
- Background: a mid or dark ground, which photographs better than white; white blows out under a flash.
- Black: a four-colour black, because K100 on fabric reads as charcoal under stage lighting.
- One job: where several sponsors appear, print the wall as one job so no logo drifts between panels.
What mistakes ruin step-and-repeat photographs?
Most media wall failures show up only in the photographs. A laminated vinyl wall turns every flash into a hotspot. A logo pitch of a metre or more leaves half the photographs with no complete logo. A perfect row-and-column grid lets crops fall between logos, and artwork sized to the visible aperture loses about 20 mm on every edge to the seam.
- Laminated vinyl as a media wall. The reflection ruins the photographs the wall exists for.
- A wide pitch. At a metre or more, half the photographs contain no complete logo.
- An aligned grid. It reads as a spreadsheet and every crop lands between logos. Stagger the rows.
- Artwork sized to the aperture. About 20 mm on every edge is taken by the seam.
- A white background. It blows out under a flash and flattens the logos.
- No ballast outdoors. A tensioned surface is a sail and it does not need much wind.
Worked example: a 3000 × 2300 mm media wall for an awards dinner
Hypothetical planning example. Actual production timing, paper availability, and logistics are confirmed individually upon artwork and specification review. An events committee needs one press wall at the entrance to a hotel ballroom for an awards dinner, carrying the organiser’s logo and two sponsor lockups. Photographs will be taken of two or three guests at a time, so the common press wall size fits.
- Wall: 1 step-and-repeat media wall, 3000 × 2300 mm visible.
- Material: dye-sublimated fabric, matt, with a silicone edge into an aluminium frame.
- Printed size: 20 mm beyond the aperture on every edge for the seam.
- Logo pattern: three lockups alternating, logo pitch about 450 mm, staggered, supplied as a repeating pattern.
- Safe areas: nothing within 60 mm of the aperture edge, and the bottom 300 mm left as background.
- Ground: a dark brand colour rather than white, so the logos hold contrast under the photographer’s flash.
- Frame: freestanding, with a wheeled case, so the same frame can take a new skin at the next event.
- Timing: standard turnaround is 7–14 working days including fabrication; the get-in slot is confirmed with the hotel before production is booked.
Before sign-off, the committee draws a metre-wide rectangle at several points on the proof and confirms that each one contains a complete logo.
Frequently asked questions about step-and-repeat backdrops
What is a step-and-repeat backdrop?
A media wall carrying a logo lockup repeated across it on a fixed pitch, so that any photograph cropped to a person contains at least one complete logo. It is designed for the camera rather than for the room.
How far apart should the logos be on a media wall?
About 450 mm between repeats, staggered rather than aligned in rows. Draw a rectangle a metre wide anywhere on the design and check that a complete logo falls inside it; if it does not, the pitch is too wide.
Should a media wall be fabric or vinyl?
Fabric, if it is being photographed. Dye-sublimated cloth is completely matt and absorbs a camera flash, while a laminated vinyl surface throws it straight back as a hotspot.
What size should a step-and-repeat backdrop be?
3000 × 2300 mm is the common press wall and is comfortable for two or three people in a photograph. 2400 mm wide suits a registration desk or a small room, and 4000 mm wide is a group wall.
How long does a media wall backdrop take?
Standard turnaround is 7–14 working days, including fabrication. Rigging is scheduled separately against venue access, and express is quoted per job.
Where can you order a step-and-repeat media wall in Singapore?
EZ Print, trading since 2017, produces step-and-repeat media walls, tensioned fabric backdrops, hung PVC backdrops and modular stage sets in Singapore. Each one is quoted from its specification, artwork is checked before production, and delivery is by island-wide courier. For planning the rest of the event signage around the wall, see the banner, flag and backdrop layout guide.
Send the visible width and height, the material, the rigging method, how many people will stand in front of the wall and the event date through the quote request page.
